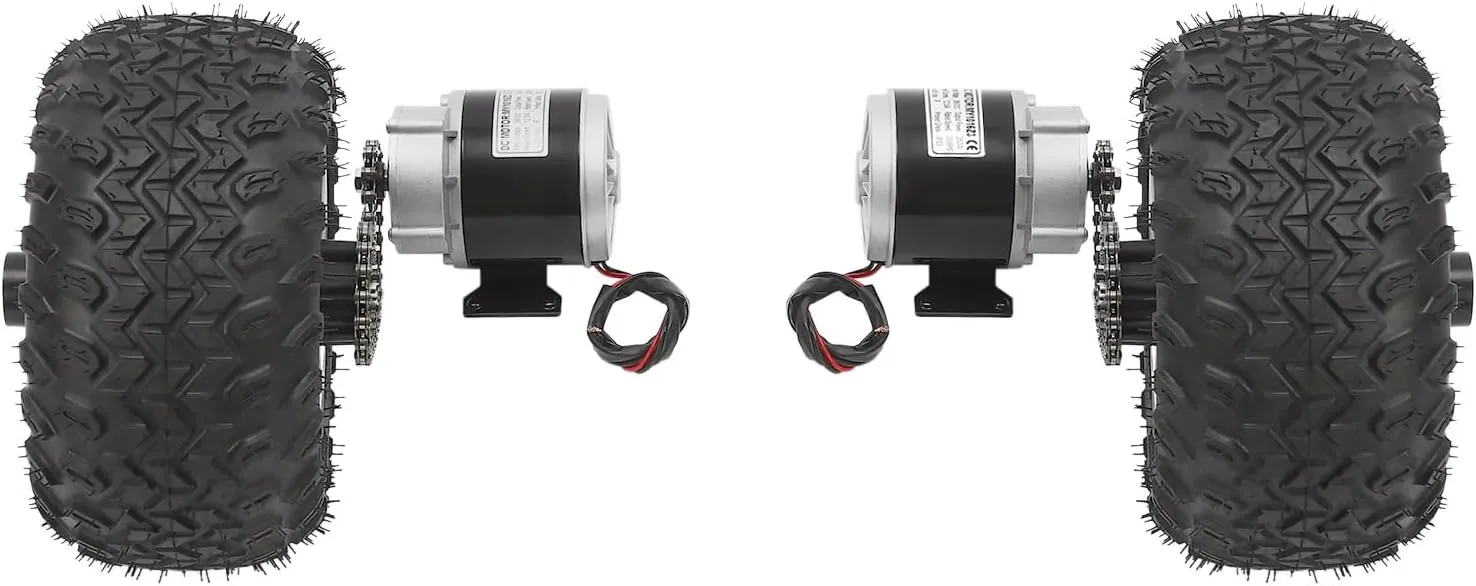

- 【Double Wheel Set】This product is made of high-quality copper, iron, aluminum, magnetic and rubber, sturdy, stable, rust-proof and wear-resistant, ensuring long service life and strong load-bearing capacity, up to about 330.69-440.92lbs.
- 【Digital Display Throttle】The digital display throttle is not only capable of adjusting the motor boost level, but also integrates a digital display screen to show the battery voltage in real time, allowing the rider to know the vehicle status at a glance, making the operation more intuitive and precise.
- 【Powerful Motor】With a 350W brush gear motor, it can reach a maximum speed of 6.21mile/h. Compared to brushless geared motors, it has high starting torque, simple control and high adaptability.
- 【Wide Application】This product is suitable for small go-karts, electric wheelchairs and senior mobility scooters. The F insulation class and IP33 protect grade make it safe and reliable, so you can use it with confidence.
- 【Complete Kit】This kit contains the complete set of accessories needed to modify your scooter without the need to purchase them separately. Matching kits will provide you with more stable and consistent performance.
Specification
Material: Copper, Iron, Aluminum, Magnetic and Rubber
Color: Black
Assembly Required: Yes
Motor Type: Brush Gear Motor
Rated Voltage: 36V
Output Power: 350W
Unload Current: ≤2A
Rated Current: ≤12.5A
Unload Speed: 370rpm
Rated Speed: 330rpm
Rated Torque: 1.1N.m
Efficiency: ≥80%
Gear Ratio: 9:7:1
Insulation Class: F
Protect Grade: IP33
Speed: 10km/6.21mile/h
Wheel Diameter: 25.4cm/10in
Axle Hole Diameter: 12mm/0.47in
Package Size: 48*37*30cm/18.9*14.57*11.81in
Load Capacity: About 150-200kg/330.69-440.92lbs
Gross Weight: 17kg/37.48lbs

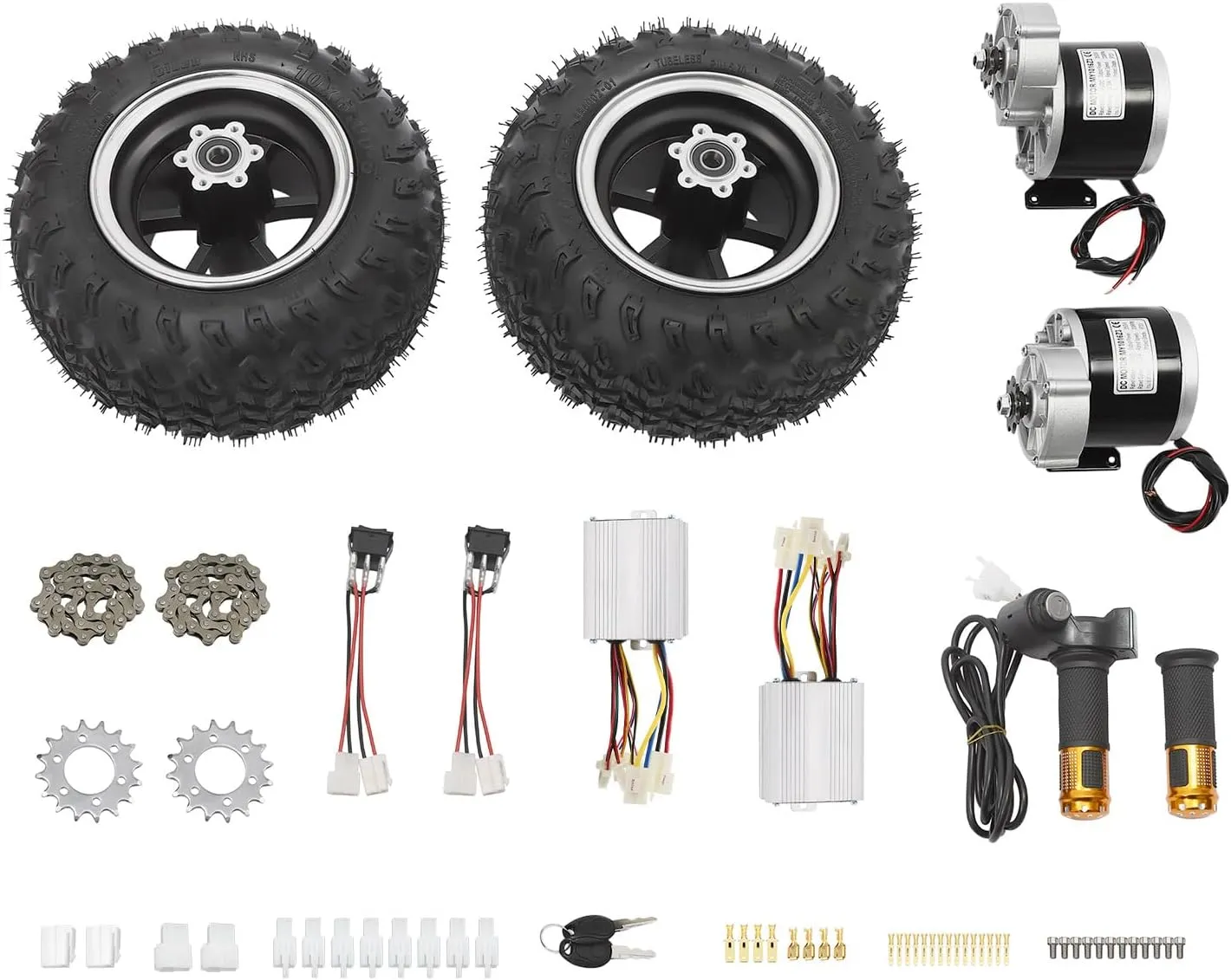

Package Included
2* Wheels
2* Motors
1* Digital Display Throttle
Other Accessories for Assembly
Notes
1.Please note that this product cannot change gears, you can adjust the speed by throttle.
2.Please note that this kit does not include batteries, you need to buy batteries separately, lead-acid batteries and lithium batteries are available, recommended battery capacity is 24V 15Ah.
3.Please note that the wheels are vacuum tires without tubes.
4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
