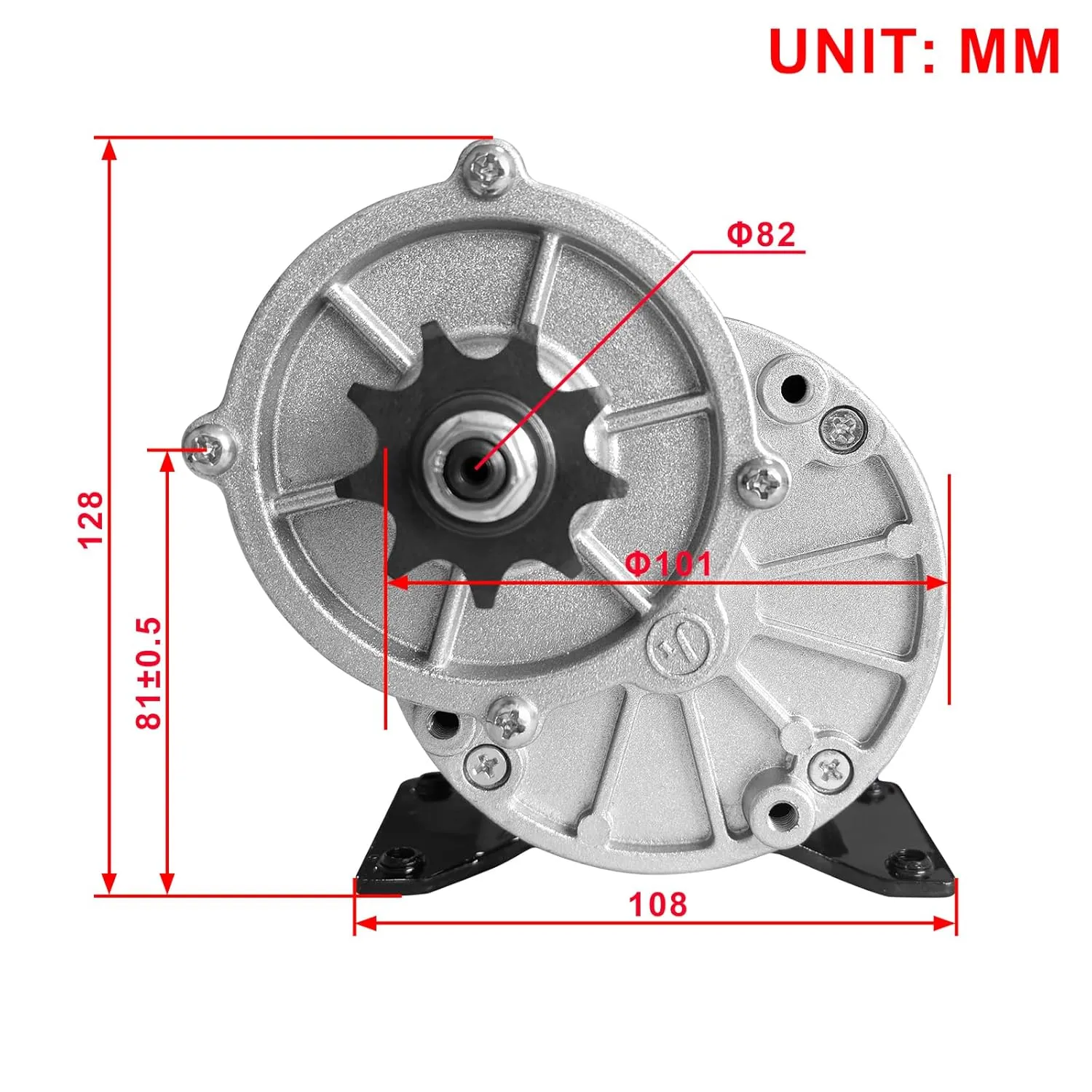

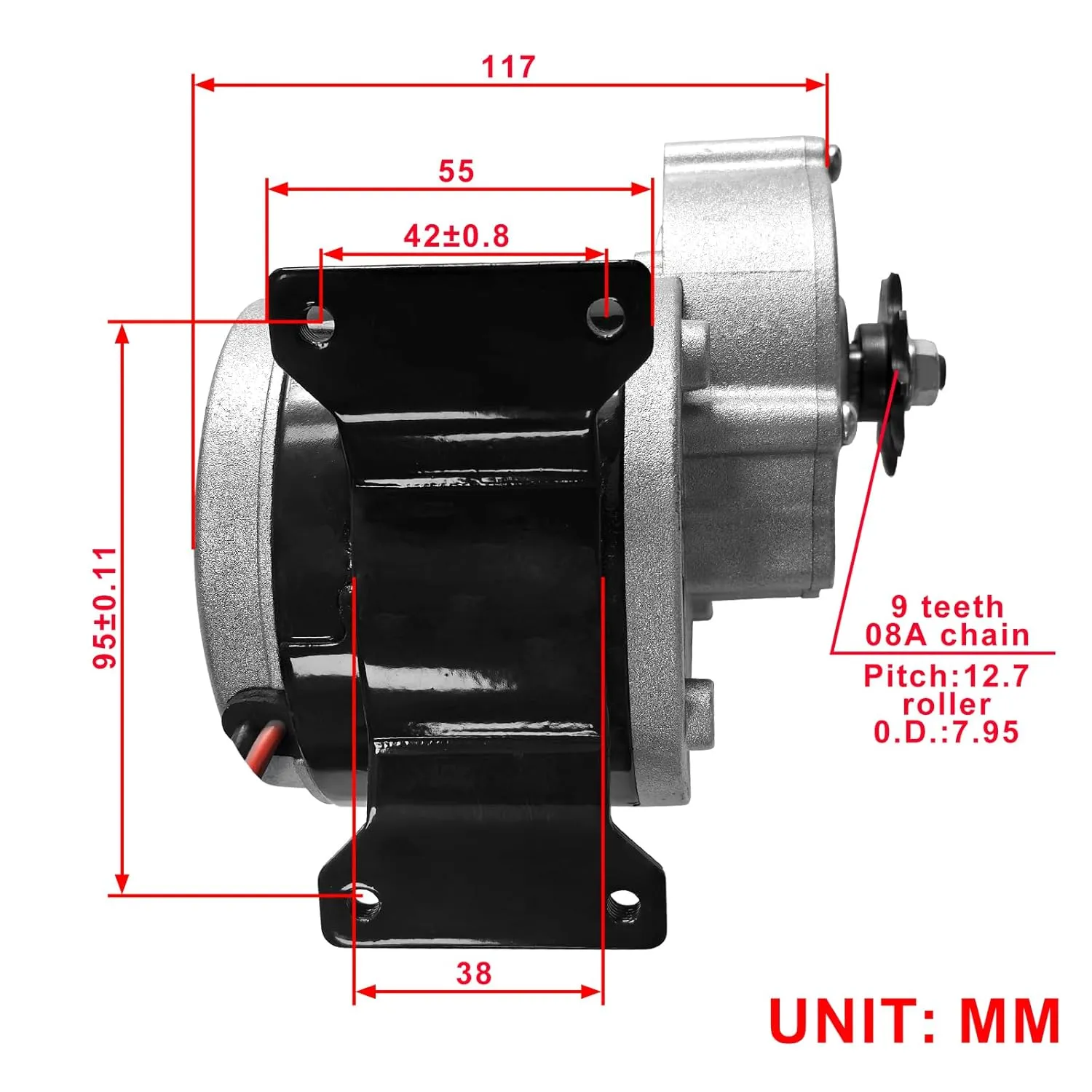

- 【Precise Parameters】Rated Voltage: DC24V; DC Motor Rated Speed: 3000rpm; Gear Ratio: 9.78:1; DC Gear Motor Speed: 300 rpm; Rated Torque:1.11N.M; Maximum Rated Current: 18.7A; No-Load Current≤2.2A; Efficiency>78%; Sprocket Type: 9 Teeth 410; Pitch: 12.7mm (1/2");
- 【Reversible Motor】This motor offers flexibility with its ability to rotate in both clockwise and counterclockwise directions. Simply reverse the power connections to switch between rotation modes, allowing for versatile applications and easy adjustments to meet your needs;
- 【Durable Gear Reduction Motor】The Sturdy Construction and Durable Materials Ensure Reliable Operation Even in Demanding Conditions. Additionally, the Bike Motor Comes with a 410 Model Sprocket 9 Tooth for Ordinary Bicycle Chain, you can Change 410 Sprocket 13 Tooth by Yourself, 420/428 Model Sprockets are Suitable;
- 【Superior Features】Our Electric DC Geared Motor is Equipped with High-quality Pure Copper Wire, Premium Carbon Brushes, and Thick Wiring, To Ensure Silent Operation and Enhances Durability, Giving You a Reliable and Long-lasting Motor;

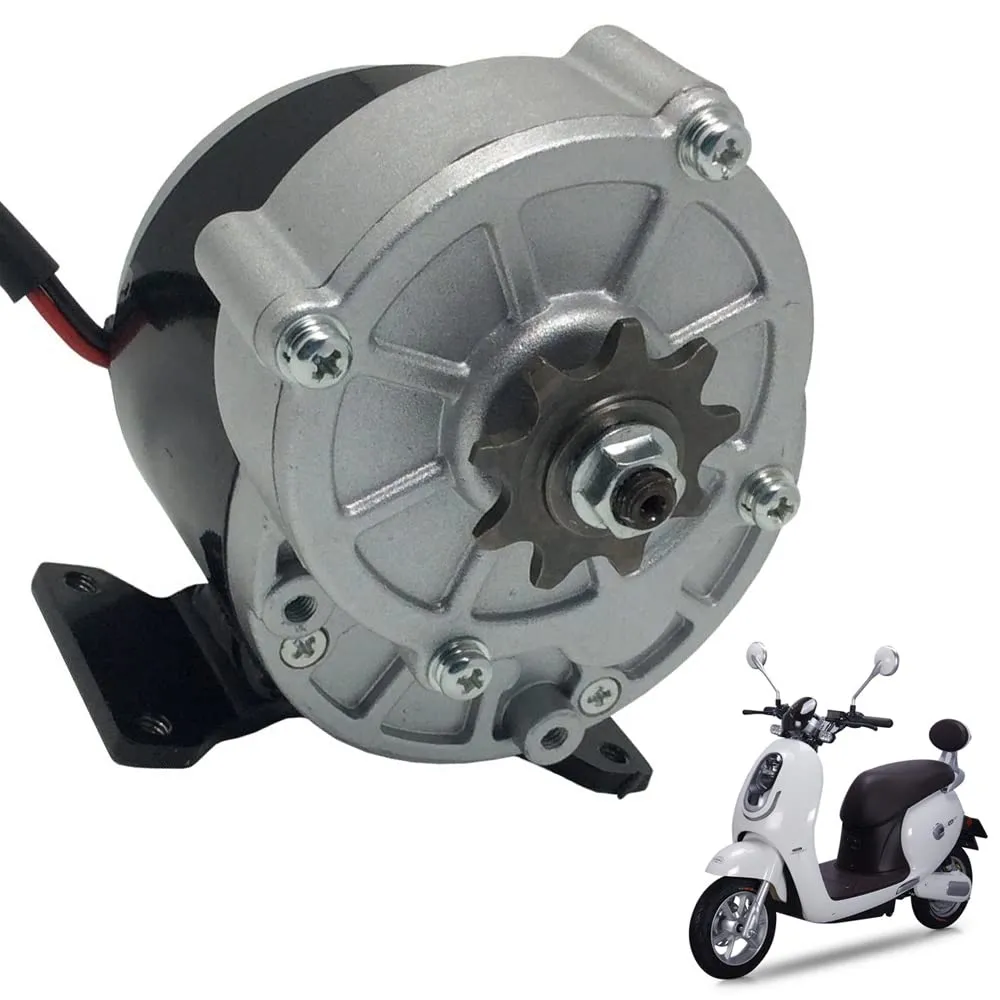

- 【Wide Application Range】This 24V 350W Electric Motor is not compatible with the Razor Dirt Quad, but it is ideal for most electric bicycles, mopeds, pocket bikes, electric dirt bikes, scooters, e-bikes, and ATVs. Whether you're upgrading an existing electric vehicle or creating a custom one, this DC gear motor is an excellent choice.
