- Design: Ebike twist throttle, has a digital display to show the speed in percentage from actual speed to maximum speed and circuit board
- Easy to use: Scooter control module kit is made of aluminum and plastic, simple and easy to use, just connect to the item,there is an instruction label on the interface, easy to install
- Performance: Ebike handlebar controller kit provides stable and sensitive speed control, runs well on the right side of the handlebar, and protects the controller board from damage and heat dissipation
- : This electric scooter speed controller is made of excellent circuit boards and has a longer service life. It is suitable for 36V 500W, 36V 350W, 48V 500W brush motors
- Function: Scooter motor controller set has the rated functions of high efficiency, high torque, low heat, reverse polarity protection, and high current protection
Description
The package includes 2 (1 Twist throttle handle and 1 normal handle (matching thumb handle)). Electric scooter twist accelerator with power display, 5 LED battery indicator. Fits a standard 7/8 inch (22.2 mm) handle, and the cable length is approximately 59 inches (1.5m).
Features
Scooter motor controller set
-Color: As shown.
-Material: Aluminum alloy,plastic.
-Size: 8x6.5x4 cm/3.15x2.56x1.57 inch.
Throttle 10x2 cm/3.94x0.79 inch.
Specifications:
Rated voltage: DC /36/48V
Current limit: 23A(350W)/25A(500W)
Rated power: 350W/500W
Matching motor: DC brush motor
Undervoltage protection: 20V(24V)/31V(36V)/42V(48V)
throttle:
Throttle working voltage: DC5V
Speed control: 0.8V～4.3V
Power display voltage: DC /36V/48V
Power display:
Normal: 3 LEDs green,
Half: LED yellow,
Empty: LED red
Rotation angle: 0°~70°
Working temperature: -20℃~ 50℃
Controller line interface definition:
Battery: thick black (power supply negative) / thick red (power supply positive)
Motor: dark white (negative pole of the motor) / dark blue (positive pole of the motor)
Ignition switch: thin red (VCC) / thin blue
Indicator light: thin red (indicator power output) / thin black (indicator negative)
Brake: thin yellow (brake signal) / thin black (negative power supply)
Charging port: thin red (charge inputpower supply positive) / thin black (power supply negative)
Brake light: thin red (power supply positive) / thin black (power supply negative)
Governor: thin blue (handlebar input) / thin black (negative power) / thin
Red (5V positive power supply)

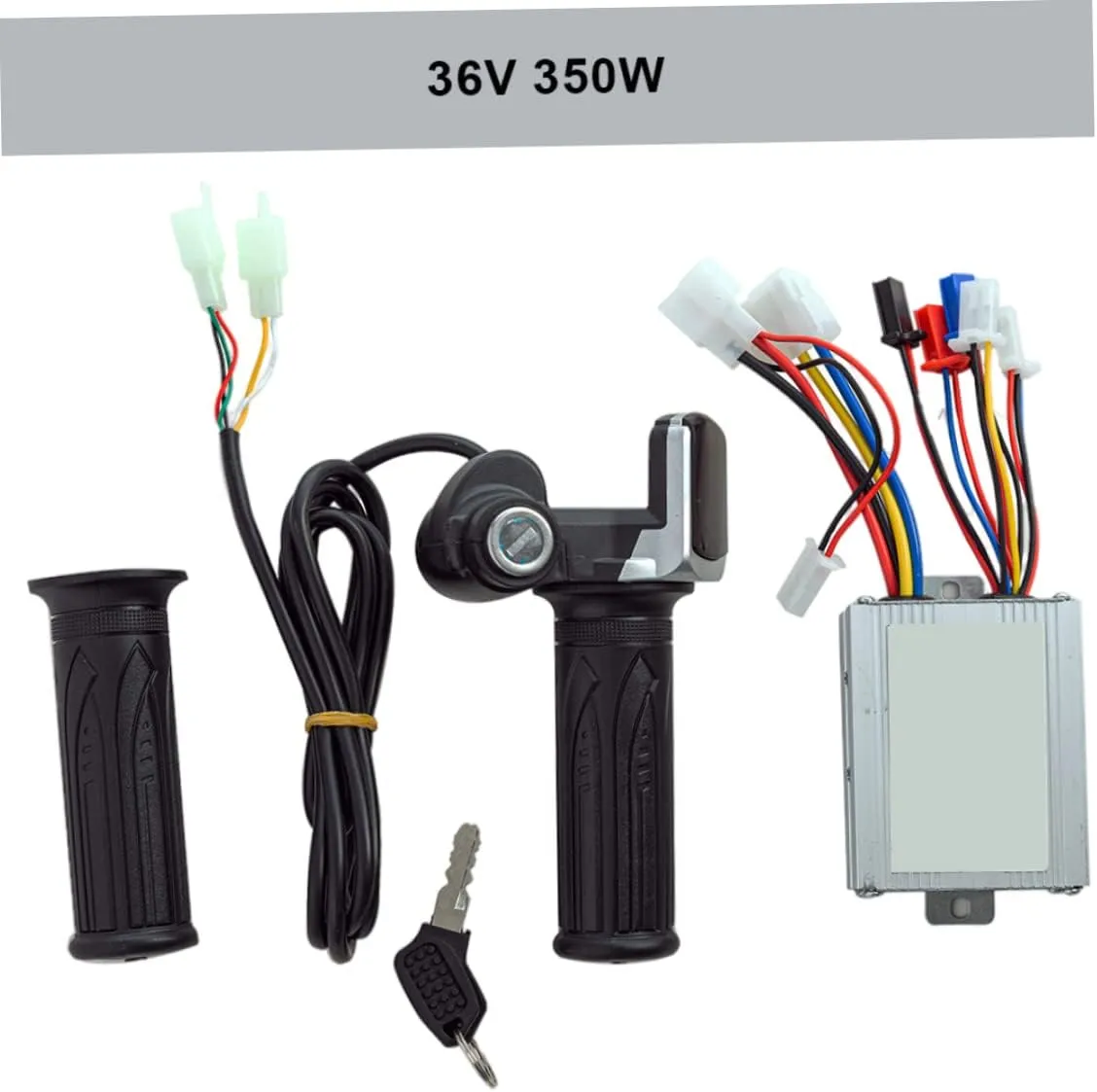

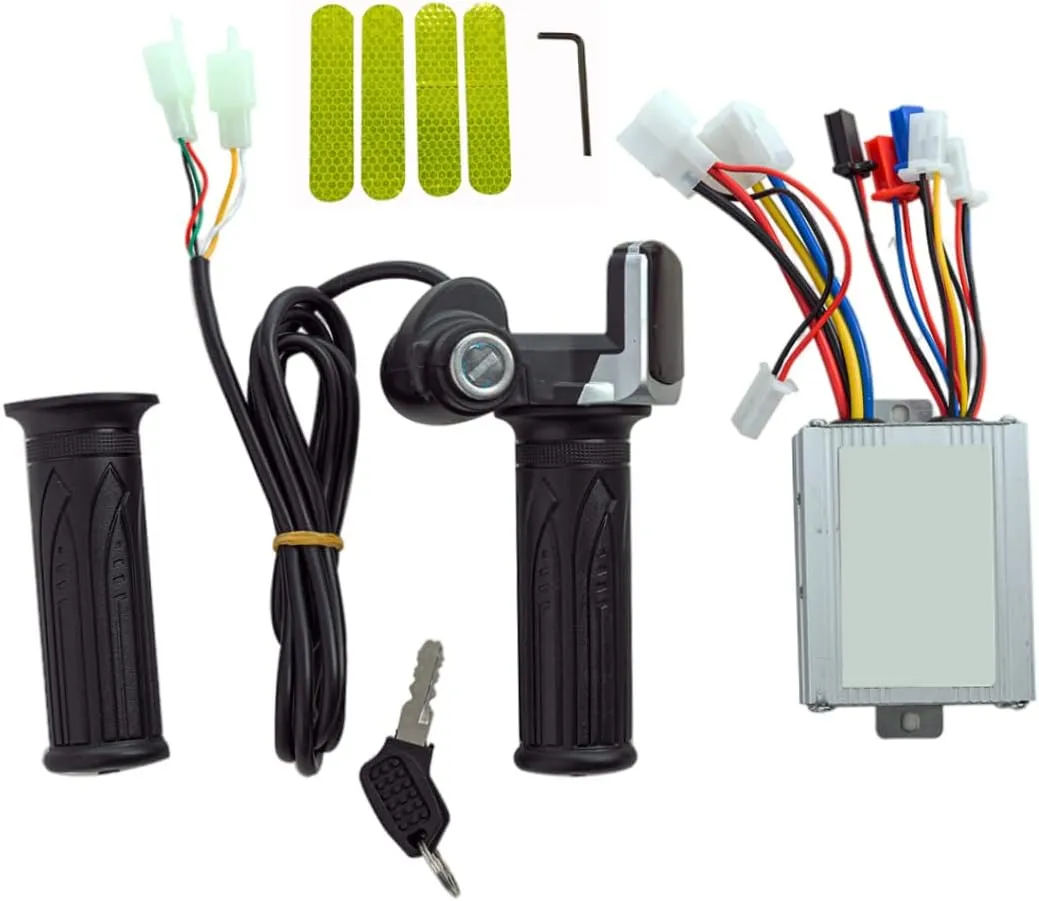

Package Including
1 * Motor controller
1 * Throttle handle (with a normal handle, 2 keys)
1 * Reflective sticker
1 * L-shaped wrench
