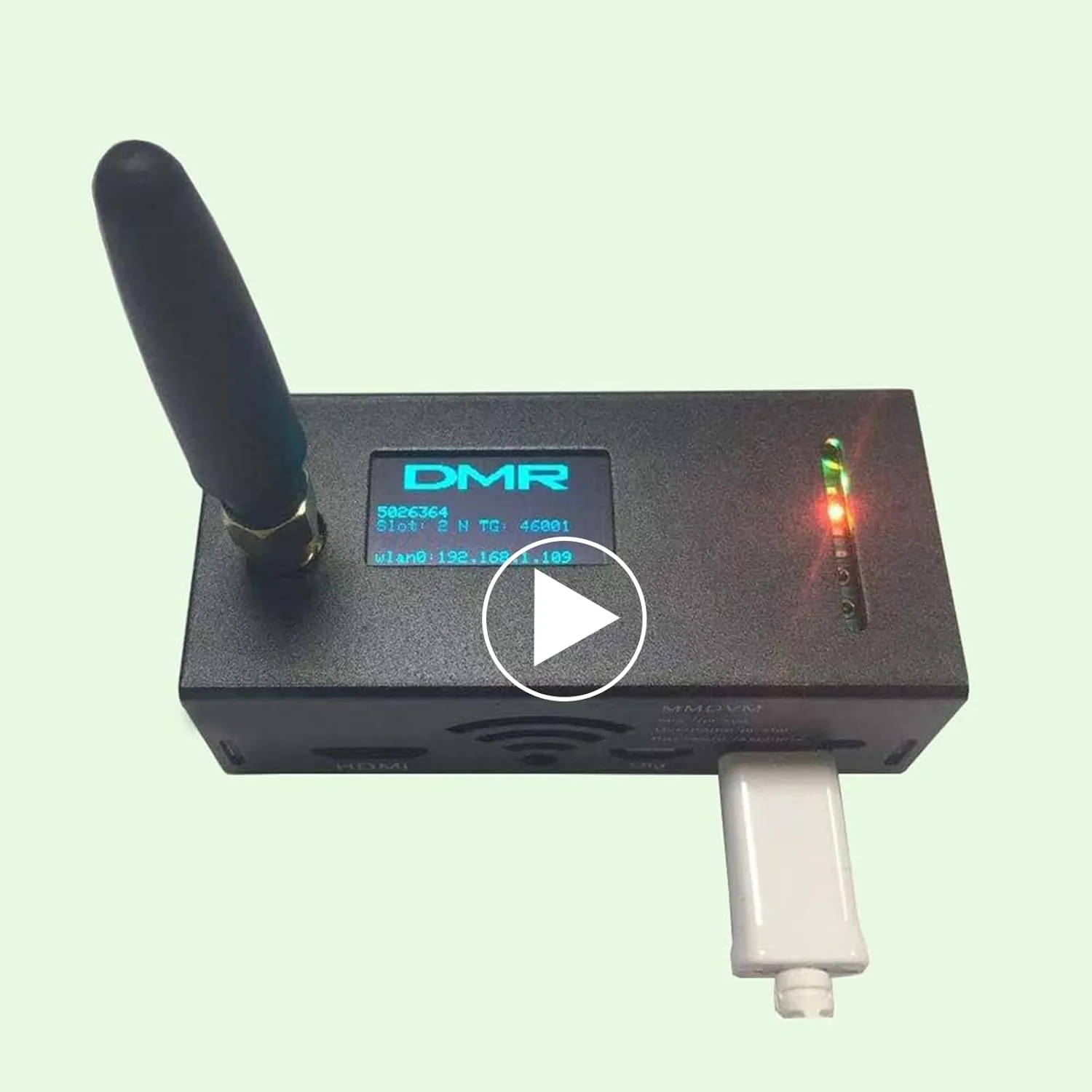

- MMDVM hotspot supports D-STAR DMR YSF P25 NXDN POCSAG, enables the different mode of digital two way radio to communicate with each other (YSF2DMR / YSF2NXDN / YSF2P25 / DMR2YSF / DMR2NXDN) and works great in UHF.
- HOTSPOT size: 2.8 x 1.3 x 0.9” inch
- Setup: Set the same freq as Radio Mobile, for example: 433.550000MHZ. DMR WIFI SSID:pi-star,PASSWORD:raspbery. Need the 2.4GHz SSID as the Pi Zero W. doesn't support 5.8GHz
- Power Supply: Mobile charger or a USB cable connected to your computer or laptop..
- Best customer services: fully-assembled. The firmware is pre-loaded. Contact us if any question, we will reply within 6 hours. 73.
All is new. We have preloaded the newest 2024 4.2.x pi-star in the TF card and set most settings. You will find it more easier to get it work.
1.we have set it to simplex mode.
2.we have choose OLED3 type
3.we have choose STM32 GPIO type
4.we have set a tmp wifi parameters， ssid:m100, password:abc12345.
You can open a tmp hotspot by mobile to get the mmdvm to work quickly.
- Supports DMR D-STAR YSF P25 NXDN POCSAG
- Built-in WiFi: 802.11b/g/n
- Built-in OLED system status display indicating Mode,Talk Group and Call Sign
- Built-in LED indicators for status of PTT, COS and Mode
- Console port SSH 22 for root level access to the operating system
- Quad Core A7 1.2GHz Processor, 512mb DDR3 RAM and 8gb TF Card
- Pocket size aluminum enclosure Features
- High performance 32-bit ARM processor
- Up to 10mW RF power SMA antenna connector, UHF antenna included
- The firmware is pre-loaded and is easily upgraded via software if you want.
- Support and tested with PI-STAR - UHF 420-450MHz
- Note: All designs will be contributed on MMDVM open source project.
Package content:
1. OLED display x1 (installed on board)
2. Raspbery Zero W x1
3. MMDVM hotspot board x1
4. 8G TFT card x1
5. Aluminum Shell x1
6. 433Mhz Antenna x1.
7. Usb cable x1
8. Instructions for use x1
